Cantilever-type Waterjet Machine
Classic cantilever type: Standardized design, high versatility, new tool bed, split-type workbench, high cutting accuracy, loading and unloading at three sides.
Keyword:
Cantilever-type Waterjet Machine
Inquiry
Product description
Classic cantilever type: Standardized design, high versatility, new tool bed, split-type workbench, high cutting accuracy, loading and unloading at three sides.
1. The cantilever-type counterweight balance structure and split-type design results in economized space and easy operation

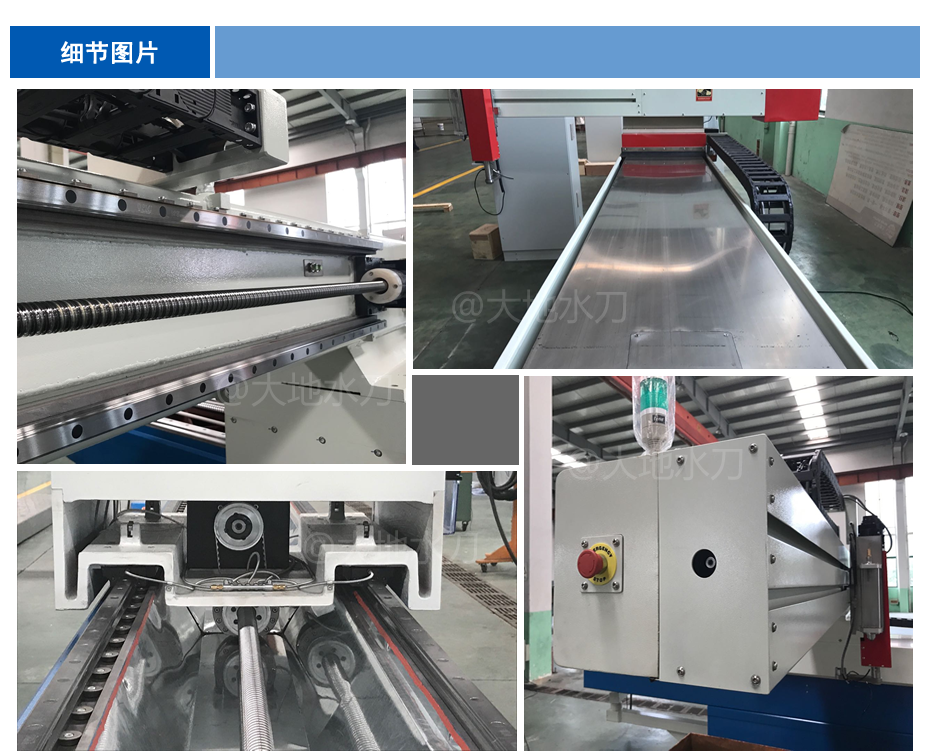

2. The guide rail of the machine tool adopts labyrinth-type waterproof and sand control design
3. With the centralized automatic lubrication system and humanization design, the equipment is maintained automatically
4. The high quality guide rail sourced from international brand is used to guaranteed the high precision of parts processing and the smooth transmission
5. Three-axis, five-axis, and multi-head cutting may be optional
|
Model |
DWJ13 Series-FG/FN |
DWJ15 Series-FG/FN | DWJ20 Series-FG/FN |
|
X-axis travel |
1300mm | 1500mm | 2000mm |
|
Y-axis travel |
1300mm | 2500mm | 3000mm/4000mm/6000mm |
|
Z-axis travel of cutting head |
200mm | 200mm | 200mm |
|
Linear accuracy of machine tool |
±0.05mm/m ±0.08/
whole range |
±0.05mm/m ±0.08/
whole range |
±0.05mm/m ±0.08/
whole range |
|
Repeated positioning accuracy |
±0.02mm | ±0.02mm | ±0.02mm |
|
Maximum operating speed |
10m/min | 10m/min | 10m/min |
|
Transmission mode |
Ball screw and linear guide rail |
Ball screw and linear guide rail |
Ball screw and linear guide rail |
|
Maximum load capacity |
1000kg/m² | 1000kg/m² | 1000kg/m² |
|
Control accuracy |
0.001mm | 0.001mm | 0.001mm |
